Product Details
Technical Specification

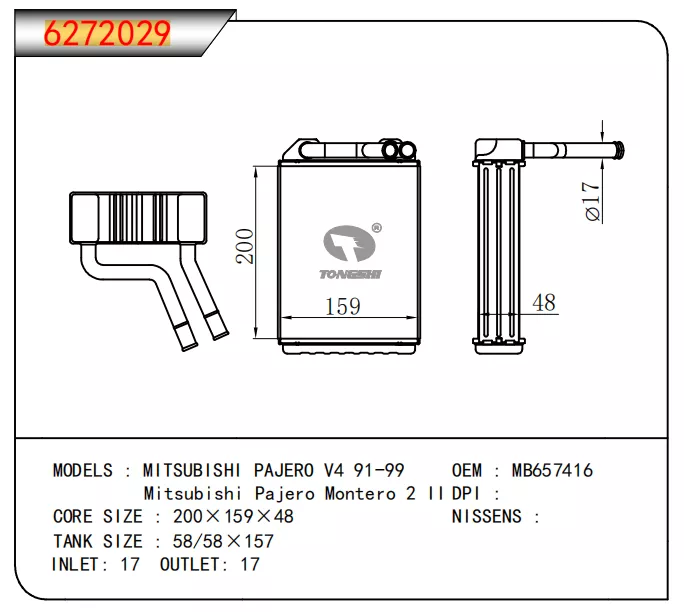

| TS NO. | MODEL | OEM | DPI | NISSENS | CORE SIZE |
TANK SIZE |
INLET | OUTLET |
|
6272029
|
MITSUBISHI PAJERO V4 91-99/
Mitsubishi Pajero Montero 2 II
|
MB657416 |
200×159×48
|
58/58×157
|
17 | 17 |
We are a factory from China. We are a wholesaler and supplier. The MOQ of our products is 20 for each model.
Our Advantage
1.The samples are sourced from the OEM sample or provided by customers,which fundamentally ensures that the product development is in the best state of matching with the performance of OEM parts and size, which eliminates many hidden dangers caused by accumulated tolerance in the manufacturing process of market parts.
2.The company cooperates with several OEM manufacturers. The personnel quality, technical specifications and inspection standards will not change just because it's the after market auto parts. Those standards mentioned above will be strictly in accordance with IATF16949 quality control system,and we will not implement another set of SOP.
3.The model of varieties , less batch and whole vehicle series can meet the market demand of customers.
No matter old or new models, we have developed one serie by one serie. At present, there are more than 1000 heater models, covering 28 well-known car brands at home and abroad. Welcome to send us inquiries at any time.
4.After market products, OEM quality .
We have 3 types of heater fin: fin 4, fin 5 and fin 8. If customers have no special requirements. We make fin 5.
| Heater construction Available | |||||
| tube type | No.of Row | Core thickness | fin Thickness | fin width | fin pitch,fin type (mm) |
| 2*14.55 | 2 | 32 | 0.07 | 32 | fin5，fin pitch1.8 |
| 1.5*16 | 2 | 36 | 0.07 | 36 | fin5，fin pitch1.8 |
| 2.0*16 | 2 | 36 | 0.07 | 36 | fin5，fin pitch1.8/fin8，fin pitch3 |
| 2.0*18 | 44198 | 18/22/42 | 0.07 | 18/22/42 | fin5，fin pitch1.8 |
| 2.0*22 | 44198 | 22/48 | 0.07 | 22/48 | fin5，fin pitch1.8 |
| 1.2*26 | 1 | 26 | 0.06 | 26 | fin4，fin pitch1.6 |
| 1.5*26 | 1 | 26 | 0.06 | 26 | fin5，fin pitch1.8/fin8，fin pitch3/fin4，fin pitch1.6 |
| 2.0*26 | 1 | 26 | 0.06 | 26 | fin5，fin pitch1.8/fin8，fin pitch3 |
| 2.0*32 | 1 | 32 | 0.07 | 32 | fin5，fin pitch1.8 |
Due to the different structure of the heater's tank, we have three types heater. aluminum-plastic heater , collecting pipe heater , all aluminum heater .
5.The self-made rate of heater reaches 98%. Only packages and production auxiliary materials are outsourced, and all other accessories of heater are self-made, controlling the whole production process from the sources.
R & D and testing equipments
Technical Specification
| TS NO. | MODEL | OEM | DPI | NISSENS | CORE SIZE |
TANK SIZE |
INLET | OUTLET |
|
6272029
|
MITSUBISHI PAJERO V4 91-99/
Mitsubishi Pajero Montero 2 II
|
MB657416 |
200×159×48
|
58/58×157
|
17 | 17 |
We are a factory from China. We are a wholesaler and supplier. The MOQ of our products is 20 for each model.
Our Advantage
1.The samples are sourced from the OEM sample or provided by customers,which fundamentally ensures that the product development is in the best state of matching with the performance of OEM parts and size, which eliminates many hidden dangers caused by accumulated tolerance in the manufacturing process of market parts.
2.The company cooperates with several OEM manufacturers. The personnel quality, technical specifications and inspection standards will not change just because it's the after market auto parts. Those standards mentioned above will be strictly in accordance with IATF16949 quality control system,and we will not implement another set of SOP.
3.The model of varieties , less batch and whole vehicle series can meet the market demand of customers.
No matter old or new models, we have developed one serie by one serie. At present, there are more than 1000 heater models, covering 28 well-known car brands at home and abroad. Welcome to send us inquiries at any time.
4.After market products, OEM quality .
We have 3 types of heater fin: fin 4, fin 5 and fin 8. If customers have no special requirements. We make fin 5.
| Heater construction Available | |||||
| tube type | No.of Row | Core thickness | fin Thickness | fin width | fin pitch,fin type (mm) |
| 2*14.55 | 2 | 32 | 0.07 | 32 | fin5，fin pitch1.8 |
| 1.5*16 | 2 | 36 | 0.07 | 36 | fin5，fin pitch1.8 |
| 2.0*16 | 2 | 36 | 0.07 | 36 | fin5，fin pitch1.8/fin8，fin pitch3 |
| 2.0*18 | 44198 | 18/22/42 | 0.07 | 18/22/42 | fin5，fin pitch1.8 |
| 2.0*22 | 44198 | 22/48 | 0.07 | 22/48 | fin5，fin pitch1.8 |
| 1.2*26 | 1 | 26 | 0.06 | 26 | fin4，fin pitch1.6 |
| 1.5*26 | 1 | 26 | 0.06 | 26 | fin5，fin pitch1.8/fin8，fin pitch3/fin4，fin pitch1.6 |
| 2.0*26 | 1 | 26 | 0.06 | 26 | fin5，fin pitch1.8/fin8，fin pitch3 |
| 2.0*32 | 1 | 32 | 0.07 | 32 | fin5，fin pitch1.8 |
Due to the different structure of the heater's tank, we have three types heater. aluminum-plastic heater , collecting pipe heater , all aluminum heater .
5.The self-made rate of heater reaches 98%. Only packages and production auxiliary materials are outsourced, and all other accessories of heater are self-made, controlling the whole production process from the sources.
R & D and testing equipments
