Product Details
Technical Specification

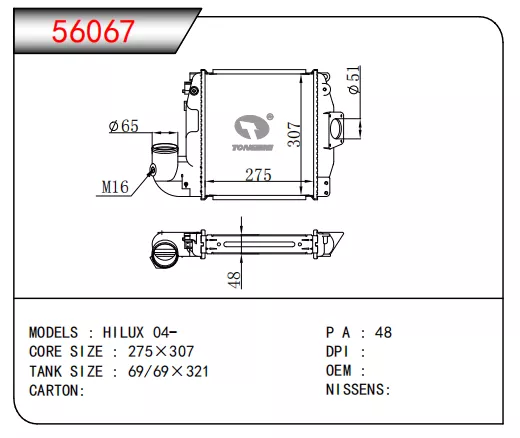

| TS NO. | MODEL | OEM | DPI | NISSENS | CORE SIZE | TANK SIZE |
CARTON | PA |
| 56067 |
HILUX 04-
|
275×307
|
69/69×321
|
48
|
We are a factory from China. We are a wholesaler and supplier. The MOQ of our products is 20 for each model.
Our Advantage
1.Intercooler Advantage：
A.The fins are made of high-quality composite materials.
B.Add Stiffeners and the gear plate is 1.8 mm thickness.
C.The intercooler tube is made of high quality composite material with high strength and good welding performance.
D.Insert fins into the tubes, better heat dissipation than Harmonica.
2.Intercooler Tube Advantage:
The inner-fin structure of tube further improves the heat dissipation area of the intercooler, and the heat dissipation capacity is larger than that harmonica tube, so the heat dissipation is more efficient.
3.Inner Fins:
The inner fins are designed like windows, so the hot air can flow around the fins well,heat dissipation area is larger and the effect is more even than harmonica.
4.Advantage of Intercooler Air Chamber
A.Air chamber is made of high-performance nylon material + 35% glass fiber injection molding.
B.The tensile strength and impact strength are much higher than the industry standard.
C.Quoting QCT828-2010 automobile air- radiator industry standard, our product meets the market demand.
D.Good air chamber material ensures the intercooler can withstand high temperature environment during operation,it is not easy to deform and shrink, and the service life is longer.
Gasket
A.The compression set rate of the sealing gasket meets the OEM standard.
B.The gasket are made of silica gel, and the quality indexes of aging and tensile resistance are higher than industry standard requirements .
C.Good sealing materials and the control of key performance indicators ensure that the intercooler has a good sealing performance and a longer life.
R & D and testing equipments
